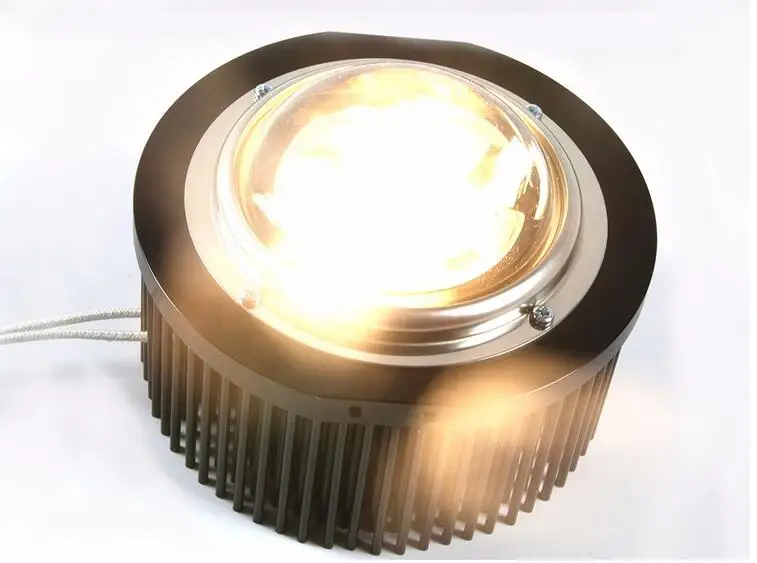

CREE CXB3590+Ideal Holder 50-2303CR+Pre-drilled passive heatsink D150mmxH70mm(for 60-70W)+D100mm glass lens

– Original CREE XLAMP CXB3590 3500K 36V CD/DB BIN – LED holder IDEAL 50-2303CR. – D100mm glass lens -Pre-drilled heatsink Φ150mm*H70mm(for 60-70W) and screws (only not include the driver) —- Original CREE Cob CXB3590: —- Ideal holder:50-2303CR :

$253.95 $168.95

Category: . Tag: .

Description

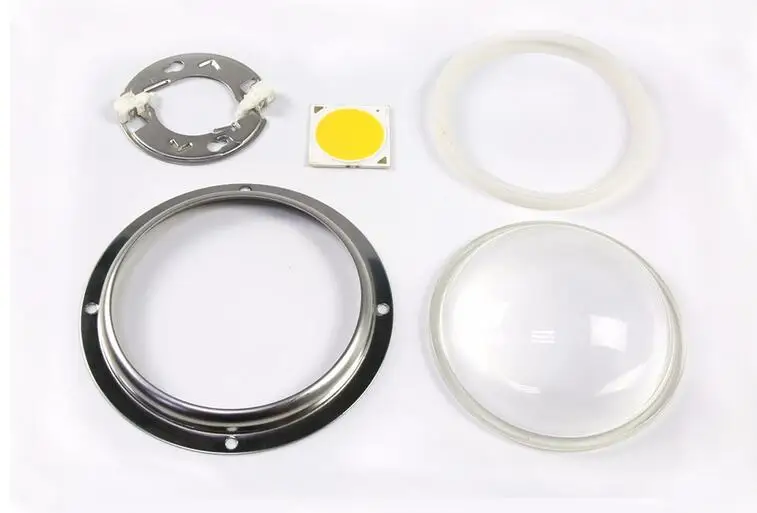

- Original CREE XLAMP CXB3590 3500K 36V CD/DB BIN - LED holder IDEAL 50-2303CR. - D100mm glass lens -Pre-drilled heatsink Φ150mm*H70mm(for 60-70W) and screws
(only not include the driver)

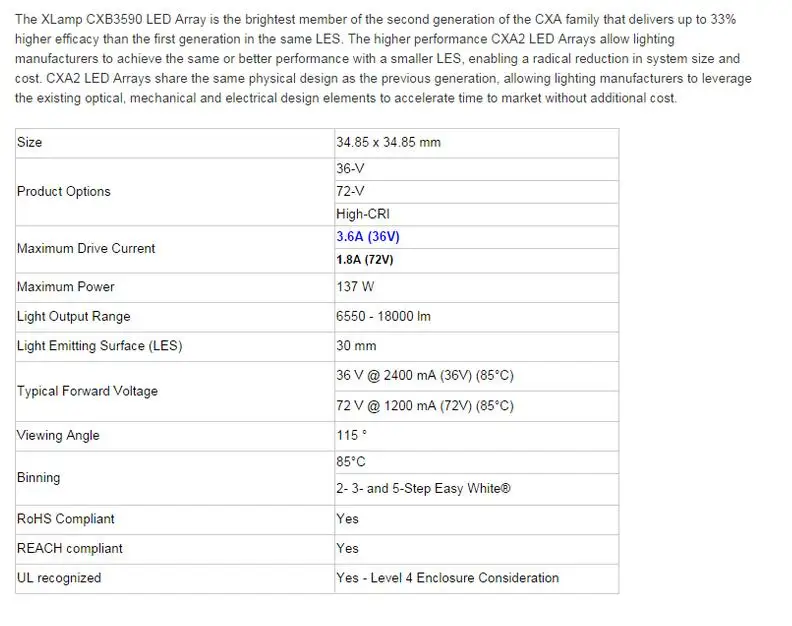

—- Original CREE Cob CXB3590:

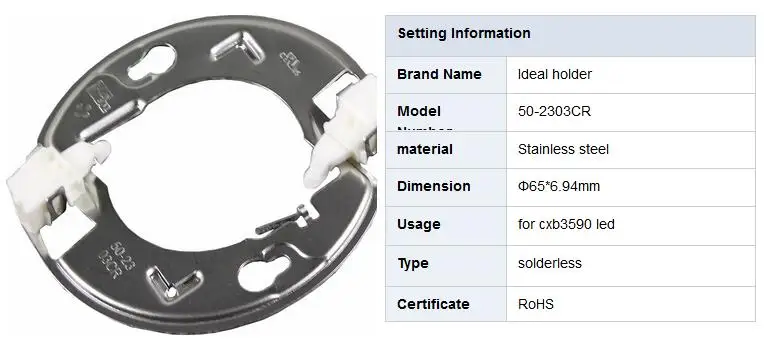

—- Ideal holder:50-2303CR :

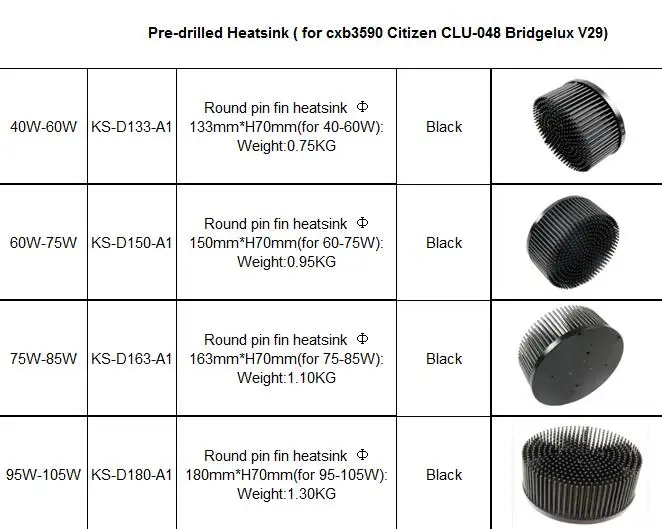

—- Pre-drilled pin fin heat sink for Led CXB3590
Feature
Standard pin fin heat sinks are relatively new derivatives of the Aluminum heat sink. Unlike aluminum extrusion heat sinks, which contain an array of vertically oriented pins, Standard pin fins features pins that gradually bend outward. Curving the pins in this way increases the spacing between the pins and allows surrounding air streams to enter and exit the pin array more efficiently without sacrificing surface area.
The impact of increased pin spacing on heat sink performance is magnified at lower air speeds because weak air streams have less power to penetrate the array of pins. In low air speed environments and in natural convection, the increased spacing between the pins reduces the heat sink’s thermal resistance by up to forty percent versus a aluminum extrusion profile heat sink. As a result, pin fins are recommended for low and moderate airspeed environments and for natural convection cooling.

Compatible with Citizen CLU-048 COB :

1.Pre drilled for Citizen CLU-048 with Ideal Holder 50-2204CT (not included)
2.Pre drilled for reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW (not included)
3.Pre drilled for Citizen CLU-048 with BJB Holder 47.319.2030.50, 47.319.2033.50, 47.319.2314.50, 47.319.2315.50 and reflector F13839_ANGELINA-XW(not included)”
4.Pre drilled 100mm Glass lens with 112mm diagonal mounting positions. (not included)
5.4x M3 screw positions on outer perimeter and 2x M3 screw positions on sides for mounting heatsink

Compatible with Bridgelux Vero 29 COB :

1.Pre drilled for Bridgelux Vero 29 (not included)
2.Pre drilled for reflector adapter LEDiL C13584_CLAMP-VERO29 and LEDiL F13838_ANGELINA-XW (not included)
3.Pre drilled 100mm Glass lens with 112mm diagonal mounting positions. (not included)
4.4x M3 screw positions on outer perimeter and 2x M3 screw positions on sides for mounting heatsink

Compatible with Cree CXB 3590 COB :

1.Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR (not included)
2.drilled for reflector adapter 50-2300AN and LEDiL F13838_ANGELINA-XW (not included)
3.Pre drilled 100mm Glass lens with 112mm diagonal mounting positions. (not included)
4.4x M3 screw positions on outer perimeter and 2x M3 screw positions on sides for mounting heatsink

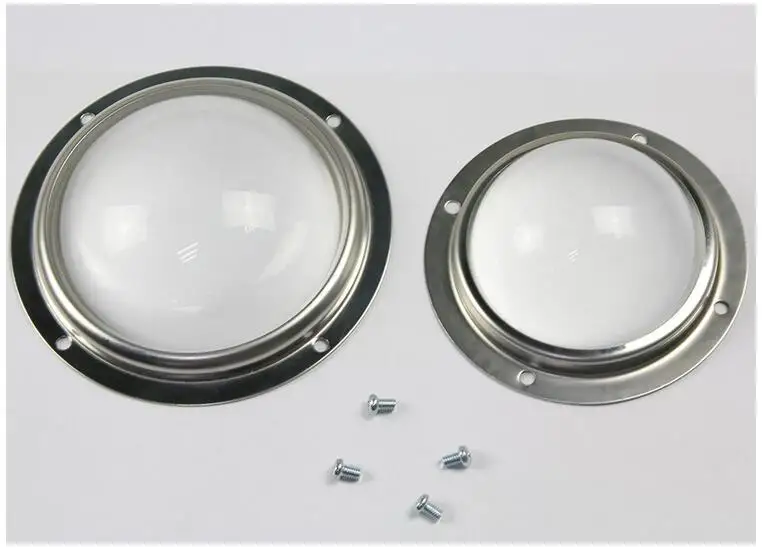

—- Glass Led lens :

D100mm , 60 degree, 90 degree and 120 degree available.

Please Kindly Note:

Inport duty or tax are not included in the item price or shipping fees.These charges are buyer’s responsibility .For you can less charged by your customs ,we will declare it as low as possible in the invoice

Or please leave us a message for what value should we declare in the invoice will better for you

Thank you so much!

Additional information

Weight 1 lbs
